When it comes to producing a high-quality silicone keypad, the foundation is laid long before the first button is pressed — it all begins with tooling. Tooling is the process of designing and creating molds that will shape the silicone into its final form. At Siliconekeytech, we understand how crucial a well-designed mold is for the success of your product. As a leading manufacturer, we know that a great mold leads to consistent quality, while a flawed mold can cause major production headaches. Let’s dive into the intricate process of silicone keypad tooling and mold creation.
The Role of CAD in Mold Design
The key to any successful silicone keypad starts with a precise 3D model, created using Computer-Aided Design (CAD) software. CAD allows designers to turn conceptual ideas into real-world production tools.
Using CAD, we create 2D and 3D models that detail the key travel, webbing geometry, and overall fit of the keypad. These models guide the entire tooling process, ensuring that every minute detail, from button height to key pitch and webbing shape, is accurately represented. At Siliconekeytech, we utilize the CAD file to simulate how the silicone material will flow, compress, and cure during the molding process. Additionally, we consider critical factors such as undercuts, draft angles, and ejection points to avoid potential molding issues, ensuring a smooth production run.
The benefits of using CAD in mold design are immense. With the right 3D model, we can eliminate errors before production begins, saving both time and costs in the long run. Here’s a breakdown of the key elements that CAD helps with:
| CAD Elements | Purpose |
|---|---|
| Keypad 3D Model | Provides the shape and dimensions of the part |
| Webbing Geometry | Defines the tactile feedback |
| Parting Line Design | Prevents flash or misalignment |
| Tooling Draft Angles | Ensures easy de-molding and smooth part release |
A solid design foundation built on CAD technology leads to fewer revisions and quicker production cycles, ultimately resulting in a high-quality final product.

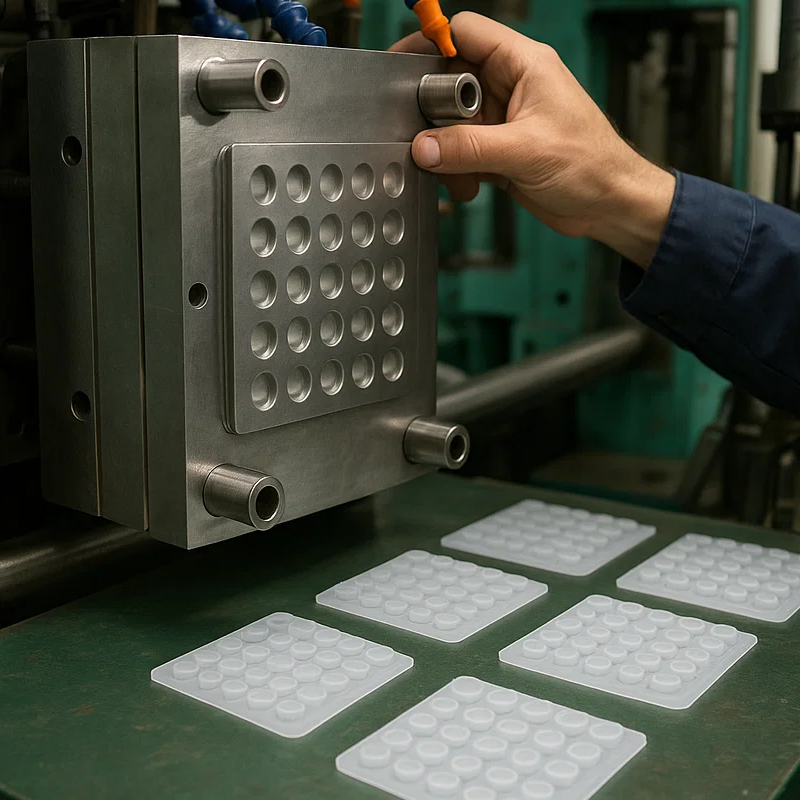

Selecting and Preparing the Mold Base
The next critical step in the tooling process is choosing the right mold base. The base material directly impacts the tool life, production efficiency, and final part quality. At Siliconekeytech, we carefully select the mold base material based on factors such as production volume, precision requirements, and expected durability.
For mid- to high-volume production, we often use P20 or H13 tool steel. These materials can withstand high pressures and temperatures, making them suitable for long production runs. For prototypes or short production runs, we prefer aluminum because it is easier to machine and offers faster turnaround times.
Before machining, we treat the material to ensure optimal hardness and surface smoothness. This helps prevent defects during the final production stage. Here’s a look at the mold materials we use and their respective benefits:
| Mold Material | Use Case | Benefits |
|---|---|---|
| P20 Steel | Mid-volume production | Good toughness, durability, and cost-effective for medium runs |
| H13 Steel | High-volume production | Excellent thermal resistance, long-lasting for large-scale production |
| Aluminum | Prototypes, short runs | Quick machinability, low cost |
The right choice of mold base material is vital for producing high-quality silicone keypads that meet precise specifications and long-term durability.
CNC Techniques Used in Mold Machining

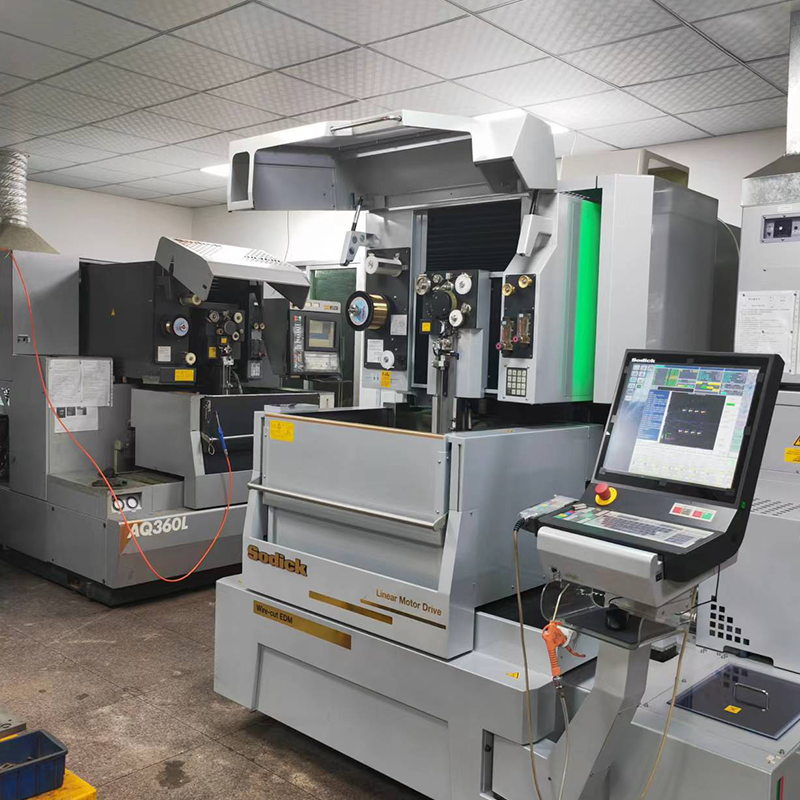

Once the mold material is selected, it’s time to bring the design to life. Precision machining is key here, and we rely on a combination of CNC (Computer Numerical Control) milling, Electrical Discharge Machining (EDM), and high-speed drilling to create the mold cavities and intricate details.

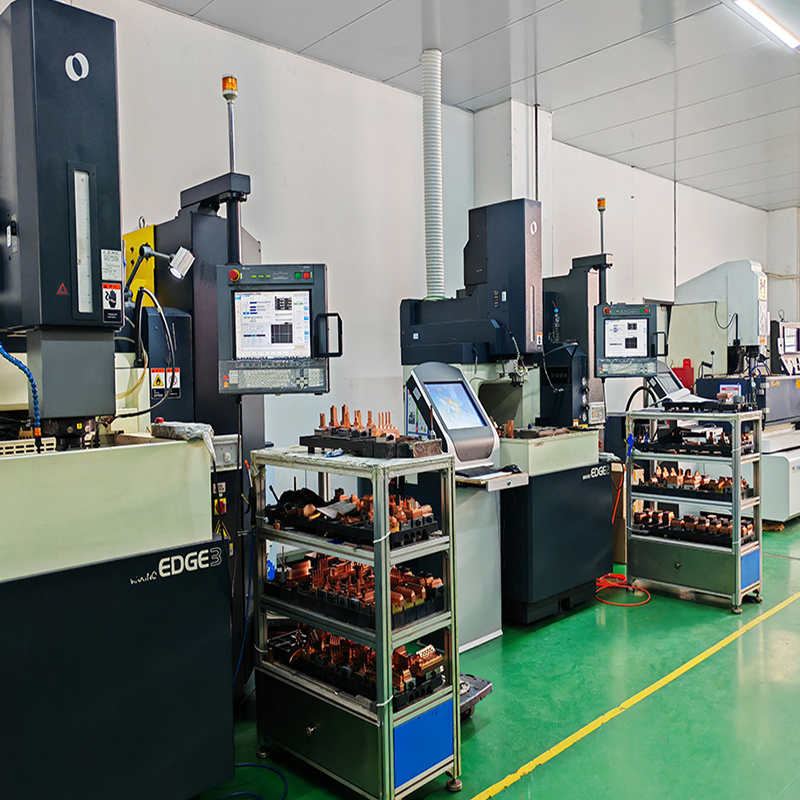

At Siliconekeytech, we start with CNC milling to cut the overall shape of the mold. For more complex features such as sharp corners, delicate webbing, or tight tolerances, we employ EDM. EDM allows us to make precise cuts that traditional machining methods can’t achieve.

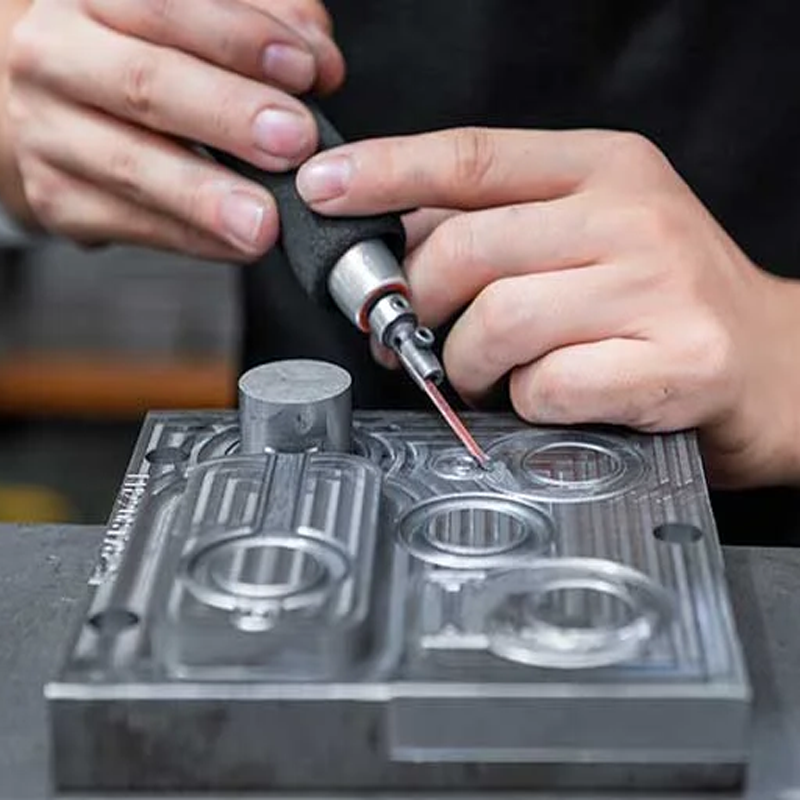

We pay special attention to crucial features like key alignment, vent holes, and surface texture. The surface finish of the mold is essential for proper demolding, coating adhesion, and the final appearance of the keypad.
| CNC Process | Use |
|---|---|
| Milling | Overall cavity shaping |
| EDM | Sharp details, deep cuts, and fine features |
| Polishing | Final surface refinement |
By combining these advanced CNC techniques, we ensure that every aspect of the mold is precisely crafted, and that the final silicone keypad meets the desired performance specifications.
Designing Webbing for Tactile Control
One of the most important elements in silicone keypad tooling is the webbing design. The webbing beneath each key controls the tactile feel—the firmness and rebound characteristics that users experience when pressing a key.
To achieve the perfect tactile response, we consider factors such as the thickness, angle, and structure of the webbing. We also simulate how the webbing will collapse and rebound using specialized software. During mold creation, the webbing cavities must be machined to precise specifications. Any deviation in depth or angle can significantly affect the final feel of the keypad.
| Webbing Feature | Impact on Function |
|---|---|
| Thickness | Determines how much force is needed to press the key |
| Angle | Affects the snap feel or how the key rebounds |
| Diameter | Controls rebound strength and tactile feedback |
The webbing is one of the most customized parts of the mold, and no two keypads feel exactly the same because no two webbing designs are identical.
Multi-Shot and Insert Molds for Complex Designs
Some keypad designs require more advanced tooling steps, such as multi-shot molding or insert molding. These techniques allow us to create keypads that integrate multiple materials or components within a single mold.
At Siliconekeytech, we frequently work with multi-shot molds for dual-color or dual-durometer designs. This method involves using separate runners and cavities for each material shot, resulting in keypads with different colors or hardness levels. For applications that require embedded components like plastic frames or PCBs, we use insert molding, where the base component is placed into the mold before silicone is molded over it.
| Molding Type | Use Case |
|---|---|
| Insert Molding | Silicone over plastic or metal frames |
| Dual-shot Molding | Two-color or two-hardness keypads |
| Hybrid Molding | Electronics embedded in silicone |
These advanced molding techniques provide enhanced functionality and aesthetics, making them perfect for specialized applications.
Tooling Validation Before Mass Production
Before we proceed to mass production, we run a series of tests to validate the mold. This ensures that it can deliver consistent precision and repeatability.
At Siliconekeytech, we conduct T1 sampling, dimensional checks, and tactile force testing to verify the mold’s performance. These trial runs help us catch any issues early, such as flash, part misalignment, or improper webbing response. If necessary, we revise the mold to ensure optimal performance.
| Validation Step | What We Check |
|---|---|
| T1 Sampling | Overall shape, surface quality, and alignment |
| Dimensional Inspection | Key dimensions, spacing, and fit |
| Tactile Testing | Force curve, snap ratio, and user feel |
Once the mold passes all tests, we begin full-scale production and implement standard quality control cycles to maintain consistent quality.
Conclusion
The creation of silicone keypad tooling and molds is a multi-step process that requires careful planning, precision, and attention to detail. From CAD design to CNC machining and mold validation, every step is essential in ensuring that the final product is high-quality, durable, and functional. At Siliconekeytech, we specialize in producing top-notch molds that meet the highest standards of quality, performance, and reliability.
If you’re looking for a trusted partner to handle your silicone keypad tooling and mold creation needs, look no further than Siliconekeytech. With our expertise, high-quality materials, and one-stop service, we are ready to bring your projects to life. Contact us today to learn more about our custom services and how we can assist you in achieving the perfect keypad solution.
