Overview:

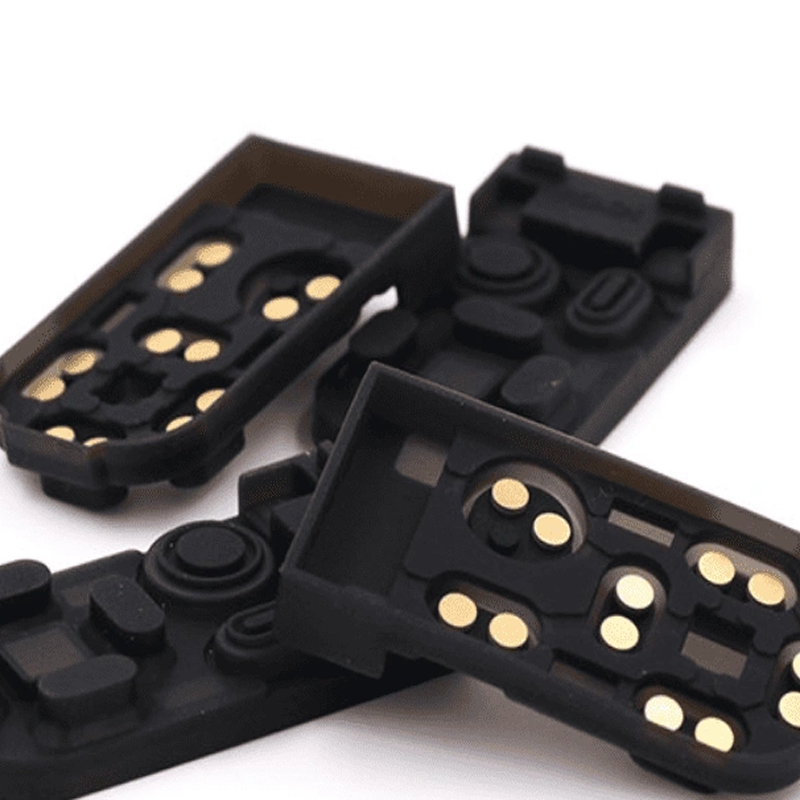

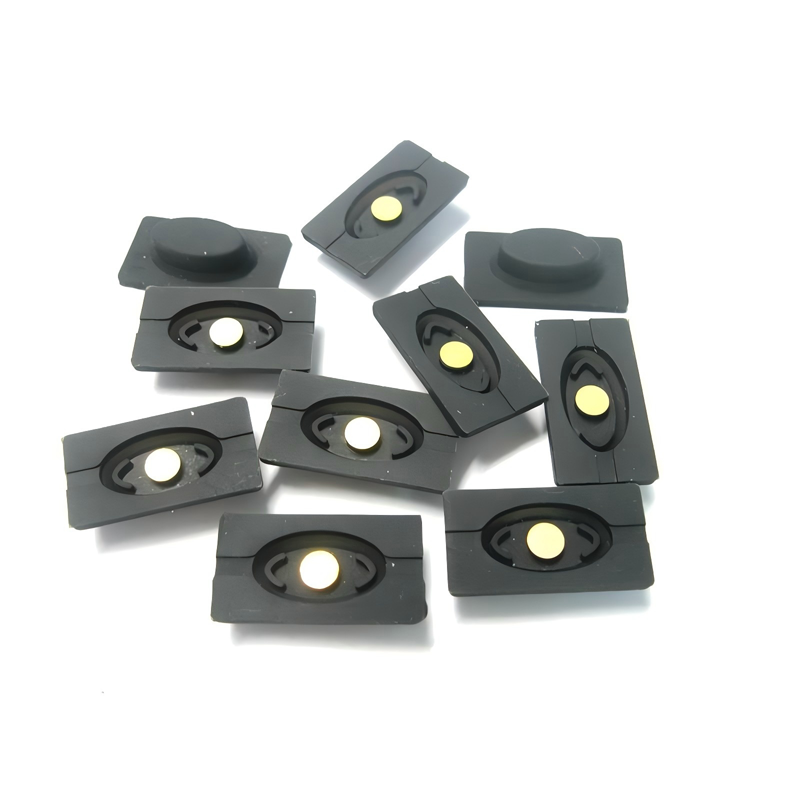

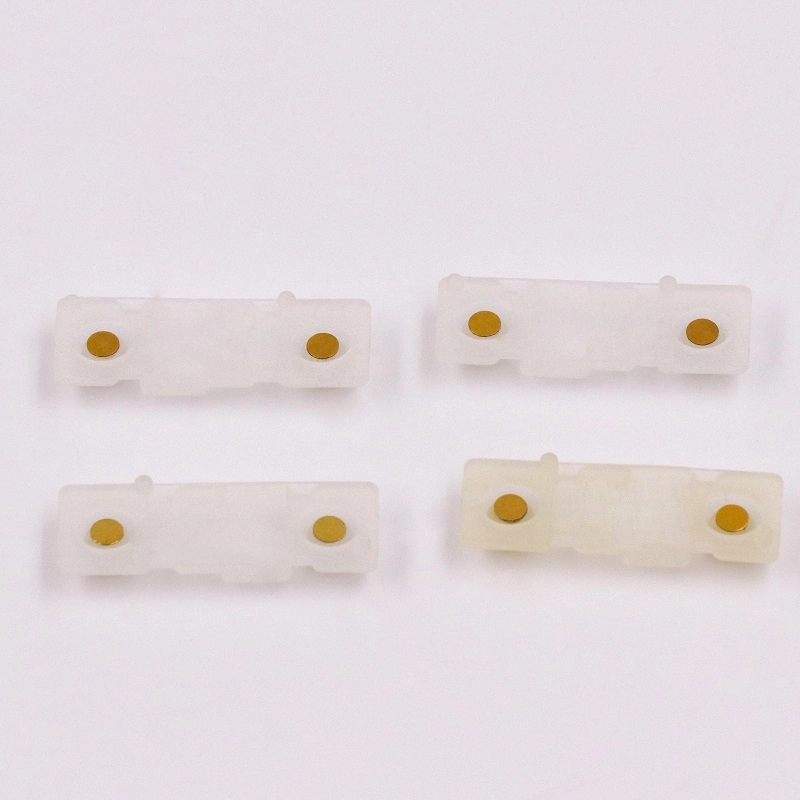

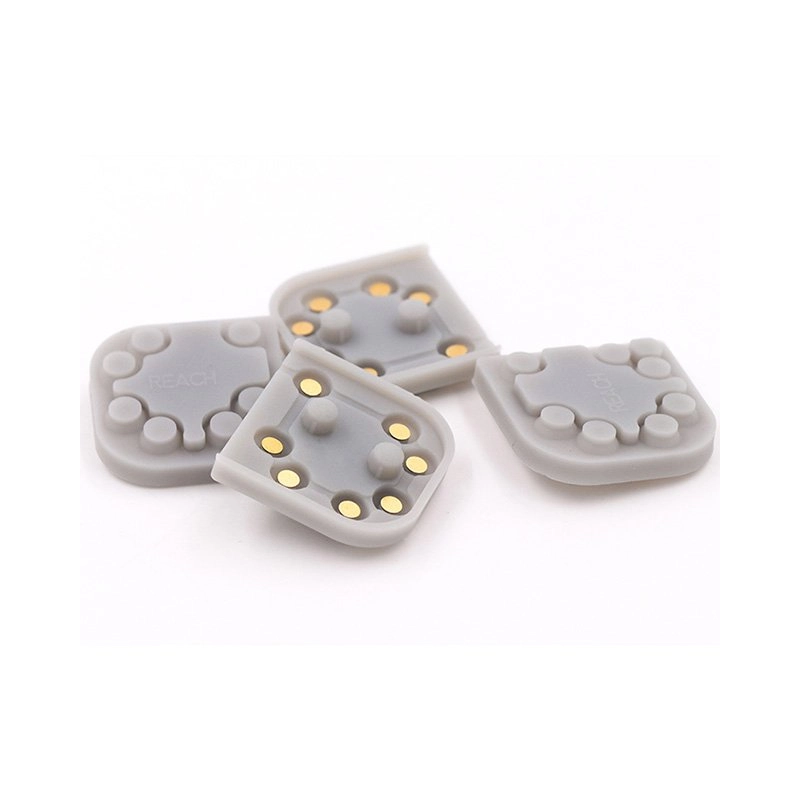

Our OEM Conductive Gold Pill Silicone Rubber Keypads are engineered for the electronics industry, delivering exceptional tactile response and reliable electrical performance. Manufactured via precision silicone compression molding using premium, heat‑resistant silicone rubber, each keypad incorporates a conductive gold‑plated pill at each key position to ensure low contact resistance and long‑term reliability. As a full-service OEM partner, we offer end‑to‑end solutions—from tailored design and rapid prototyping to material selection, rigorous testing, and high‑volume production—all backed by ISO 9001 and IATF 16949 quality management.
Specifications:
| Attribute | Details |
|---|---|
| Material | Food‑grade, heat‑resistant silicone rubber |
| Conductive Element | Gold‑plated conductive pill |
| Manufacturing Process | Silicone compression molding |
| Pill Hardness | 40–60 Shore A (conductive pill) |
| Switch Force | 150–300 gf (customizable) |
| Key Travel | 0.5–1.5 mm (customizable) |
| Color Options | Full Pantone‑matched spectrum |
| Logo & Markings | Laser etching or pad printing |
| Certification | ISO 9001, IATF 16949, RoHS, UL |
| Sample Availability | Prototypes within 10–14 days |
| MOQ | As low as 1,000 pieces |
| Packaging | Bulk, tape‑and‑reel, or custom retail packaging |
| Operating Temperature | –40 °C to +125 °C |
| Lead Time | 20–25 days |
Surface Coating Options:
- Epoxy Coating – Shields against chemicals and moisture while enhancing durability.
- PU Coating – Provides a smooth, slip‑resistant finish with improved abrasion resistance.
- Laser Etching – Produces precise, permanent legends with high contrast.
- Color Coating – Delivers vibrant, wear‑resistant finishes to match any design palette.
Quality Assurance:
Our quality assurance protocol includes Shore hardness and tear‑strength tests, 3D CMM dimensional inspections, and environmental validation through thermal cycling and humidity exposure tests. We employ specialized equipment—tensile testers for material integrity, ESD simulators for discharge resistance, and electrical continuity testers for pill‑to‑pill consistency. Every keypad is subjected to tactile feel audits and contact resistance measurements to ensure compliance with ISO 9001, IATF 16949, RoHS, and UL standards. Detailed batch traceability and FMEA procedures underpin our zero‑defect manufacturing commitment.
Factory Capabilities:
Our facility houses advanced CNC machining centers, both mirror and conventional EDM units, and precision wire‑cutting systems for mold fabrication. On the molding floor, 15 rubber compression presses and 2 LSR injection presses deliver scalable, high‑precision production. Inspection tools—3D optical projectors, seal‑integrity testers, durometers, and elasticity gauges—are operated by our ISO‑certified QA team. Integrated automation, including AutoDryers and high‑speed doming machines, ensures consistent throughput and repeatability, producing conductive gold‑pill keypads that meet the most stringent electronic industry requirements.
