OEM Conductive Nickel Pill Silicone Keypad for Consumer Electronics Applications Suppliers

Overview:

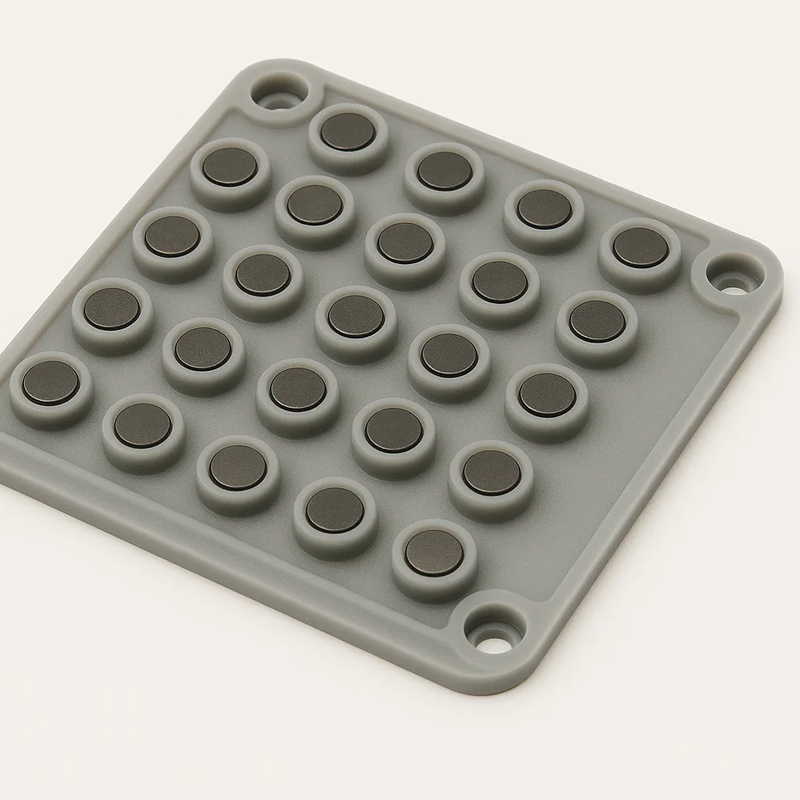

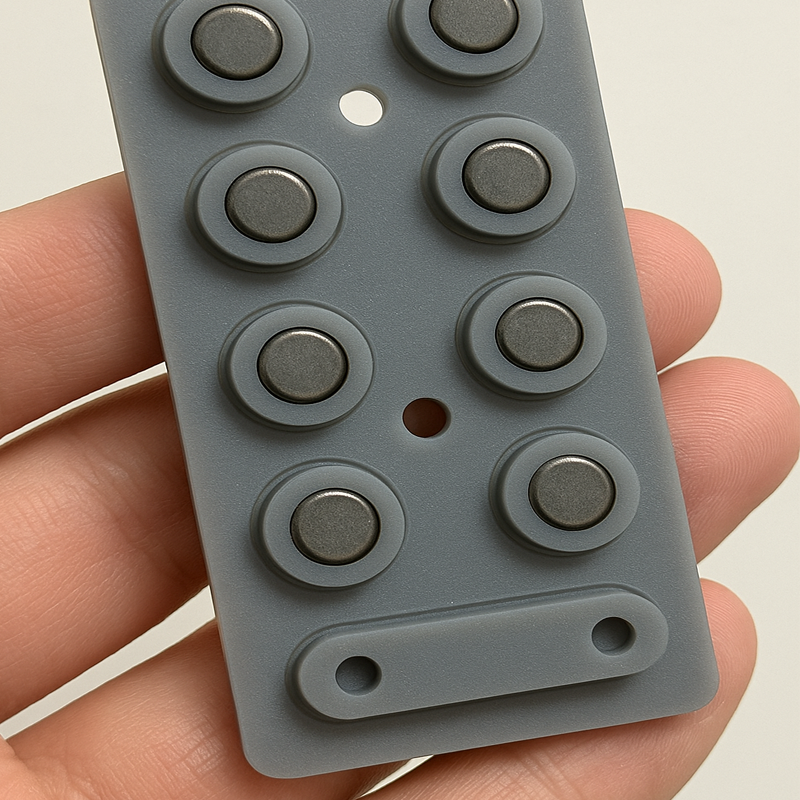

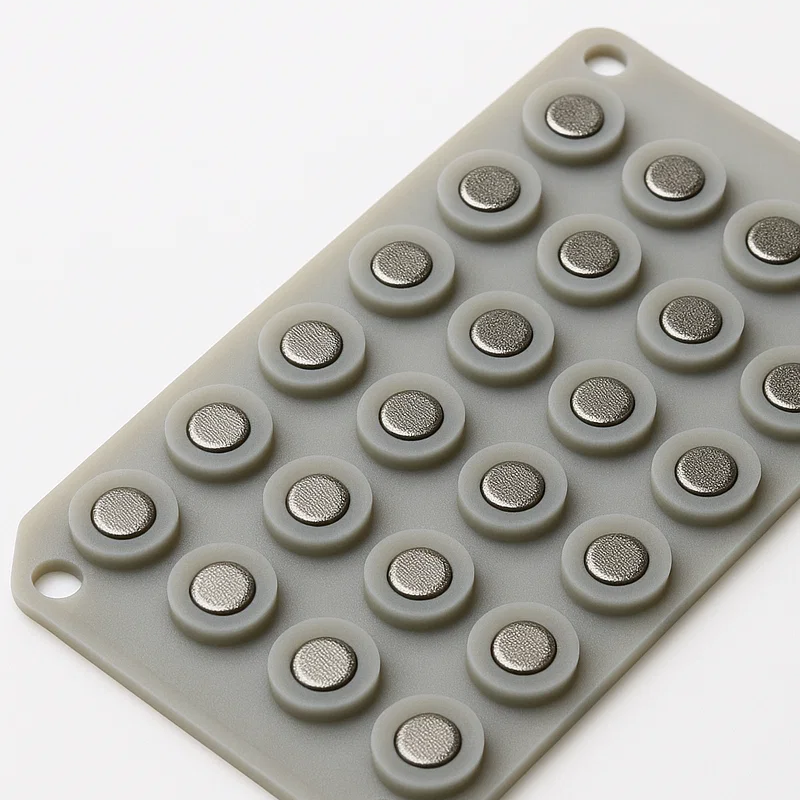

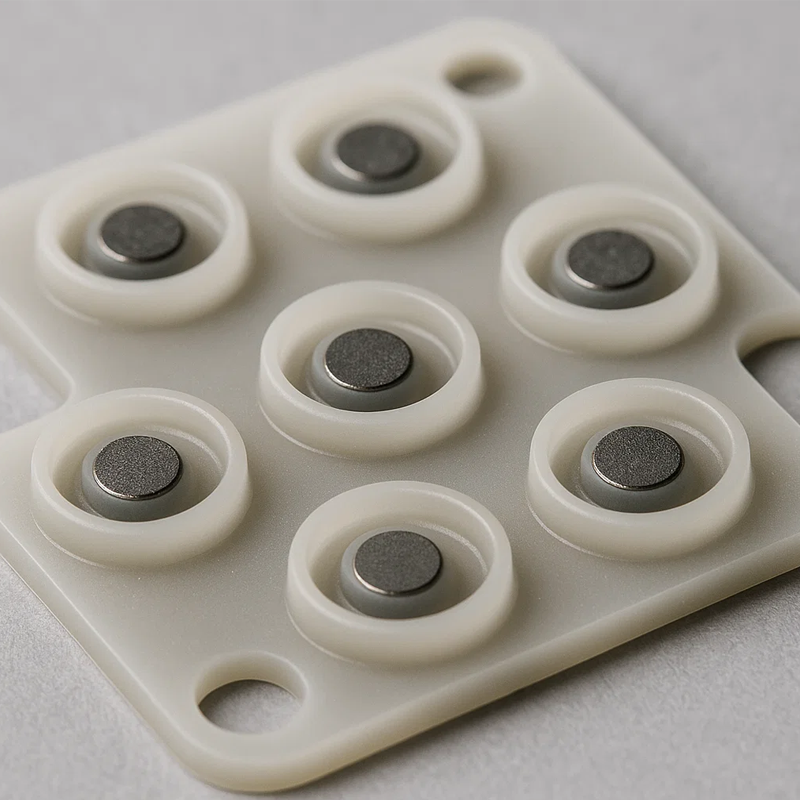

The OEM Conductive Nickel Pill Silicone Keypad for Consumer Electronics Applications combines the softness and resilience of silicone rubber with embedded conductive nickel pill elements to deliver reliable, long-lasting tactile interfaces. Manufactured through precision silicone compression molding, each button features a pre-positioned nickel pill that ensures consistent electrical contact and rapid signal transmission. As experienced manufacturers and suppliers, we offer complete OEM services—providing tailored keypad layouts, nickel pill diameters, and custom logo integration to satisfy the exacting requirements of smartphones, remote controls, and other consumer electronics devices.

Characteristics:

Surface Treatment & Integration Options

1. Conductive Nickel Pill Integration
   Precisely embeds nickel pill elements into the silicone during compression molding, guaranteeing low contact resistance and stable electrical performance.
2. Pad Printing (Silver or Epoxy Ink)
   Applies high-conductivity silver or durable epoxy ink to create sharp, custom legends and enhance visual contrast for buttons and icons.
3. Laser Etching
   Utilizes high-precision laser engraving to produce permanent, high-contrast logos or symbols without damaging the silicone surface or interfering with nickel pill conductivity.
4. Selective Electroless Nickel Plating (Optional)
   For enhanced contact surfaces (e.g., surrounding pads), applies a uniform, pore-free nickel-phosphorus coating to augment corrosion resistance and improve wear endurance in high-cycle usage scenarios.

Quality Assurance:

Our rigorous QA protocol is aligned with ISO 9001 and IATF 16949 standards to ensure each keypad meets automotive-grade reliability—critical even for consumer devices. Incoming silicone compounds undergo FTIR analysis to verify polymer purity, and rheometers check compound viscosity. During molding, in-process vision systems monitor nickel pill placement accuracy and silicone wall thickness. Finished keypads are subjected to:

• Dimensional Verification via CMM (Coordinate Measuring Machine) to confirm tight tolerances (±0.02 mm).
• Hardness Testing using durometers to ensure consistent Shore A values.
• Electrical Conductivity Testing with milliohm meters to verify nickel pill contact resistance.
• Adhesion & Peel Strength Tests to assess butt-bond integrity between silicone and nickel pill.
• Environmental Reliability checks in a 60 °C humidity chamber and continuous mechanical cycling rigs to validate long-term tactile performance.

Every unit undergoes 100% in-house visual inspection and final functional testing before packaging.

Factory Show:

Our cutting-edge manufacturing campus is equipped with:

• Precision CNC Machining Centers and Mirror/Conventional EDM Stations for mold tooling fabrication, maintaining ±0.005 mm accuracy.
• Slow-Speed Wire EDM Systems for ultra-fine cavity detailing.
• 20 Silicone Compression Presses configured with automated nickel pill feeding and positioning modules to ensure exact pill placement.
• 2 High-Speed LSR Injection Units for overmolding silicone features around integrated electronic components.
• Advanced 3D Optical Projectors, Shore Durometers, and Adhesion Testers operated by our ISO 9001 and IATF 16949 certified QA team to enforce stringent inspection standards.
• Automated AutoDryers, High-Capacity Doming Stations, and Precision Die-Cutters to streamline production workflows and deliver consistent, high-performance conductive silicone keypads at scale.

With full end-to-end capabilities—spanning design, prototyping, molding, secondary finishing, and assembly—we provide turnkey OEM solutions that ensure your consumer electronics products benefit from durable, reliable input interfaces with superior tactile feedback and electrical performance.
