At Siliconekeytech, we believe the performance of a silicone keypad does not begin when a user presses the first button—it starts much earlier, with the mold. The tooling is the master blueprint that defines accuracy, durability, and long-term reliability. For customers who value high quality, consistent production, and custom service, investing in precision mold creation is the most critical step. As a professional manufacturer and factory, we specialize in delivering one-stop service from design to mass production, ensuring every keypad performs flawlessly across millions of cycles.
In this article, we’ll explore the complete journey of silicone keypad tooling and mold creation—from CAD design to final validation—and explain why working with an experienced factory like Siliconekeytech can make the difference between success and costly delays.
The Role of CAD in Mold Design
Every keypad begins with a 3D model. Computer-Aided Design (CAD) transforms an idea into a production-ready blueprint, ensuring that the mold captures every technical detail.
Our engineering team uses advanced CAD to model key travel, webbing geometry, and part dimensions. This includes button height, pitch, edge radius, and the all-important webbing that defines tactile feedback. CAD also allows us to simulate silicone flow, compression, and curing.
Critical considerations like draft angles, undercuts, and parting lines are evaluated early. This reduces the risk of revisions later in the process—saving both time and cost for customers. At Siliconekeytech, we emphasize design accuracy to ensure smoother production and mass production readiness.
| CAD Elements | Purpose |
|---|---|
| Keypad 3D Model | Defines dimensions and geometry |
| Webbing Geometry | Controls tactile response |
| Parting Line Design | Prevents flash and misalignment |
| Tooling Draft Angles | Enables easy de-molding |
A strong CAD foundation ensures that the tooling phase moves forward efficiently, supporting high quality output with fewer errors.

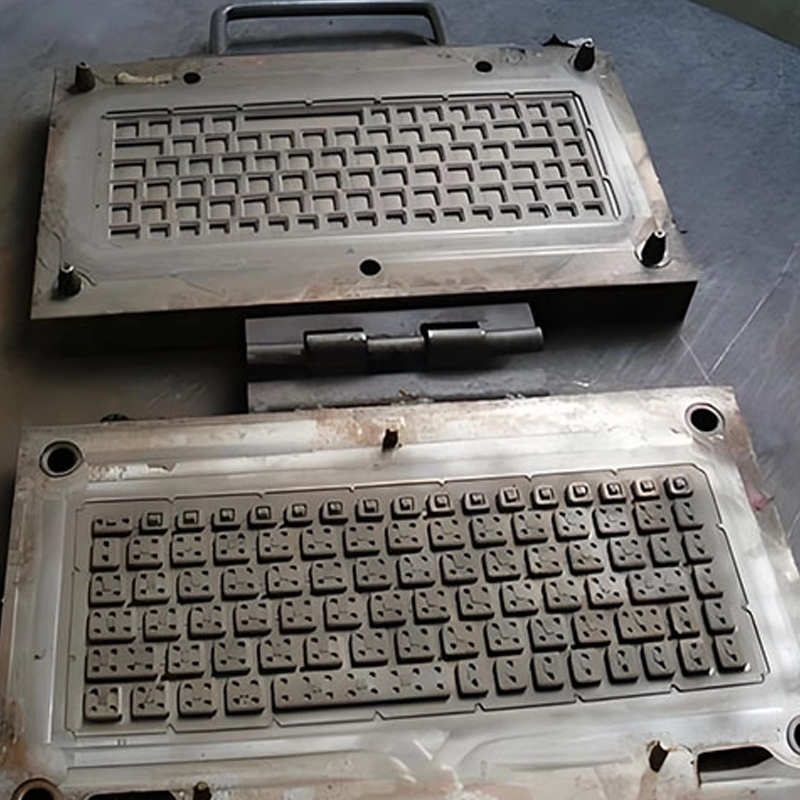

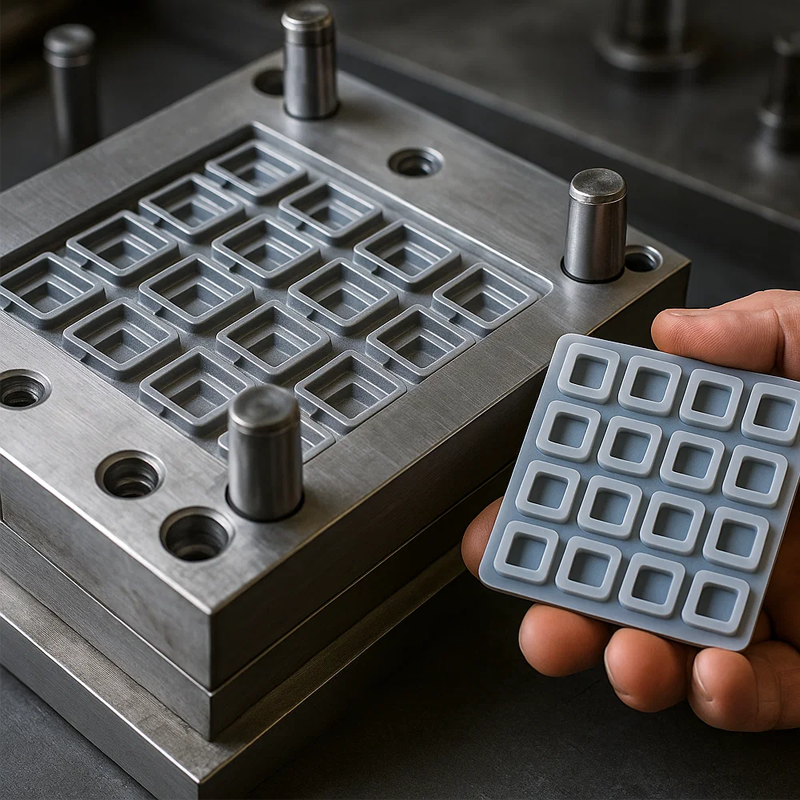

Selecting and Preparing the Mold Base
The mold base is the heart of the tooling system. Its material and preparation directly impact production efficiency and mold longevity.
At Siliconekeytech, we use P20 and H13 hardened tool steels for most production molds. P20 is ideal for mid-volume runs, while H13 offers excellent resistance to thermal fatigue, making it the material of choice for long-term mass production. For prototypes or short runs, we sometimes use aluminum for its cost efficiency and machining speed.
Before machining, mold materials undergo hardening treatments and polishing to prevent surface defects in final keypads. This ensures the mold can withstand the rigors of continuous production.
| Mold Material | Use Case | Benefits |
|---|---|---|
| P20 Steel | Mid-volume runs | Good durability and toughness |
| H13 Steel | High-volume production | Excellent thermal resistance |
| Aluminum | Prototyping, small runs | Quick machining, lower upfront cost |
By choosing the right mold base, we guarantee that each project achieves both durability and high quality performance.
CNC Machining and Precision Manufacturing

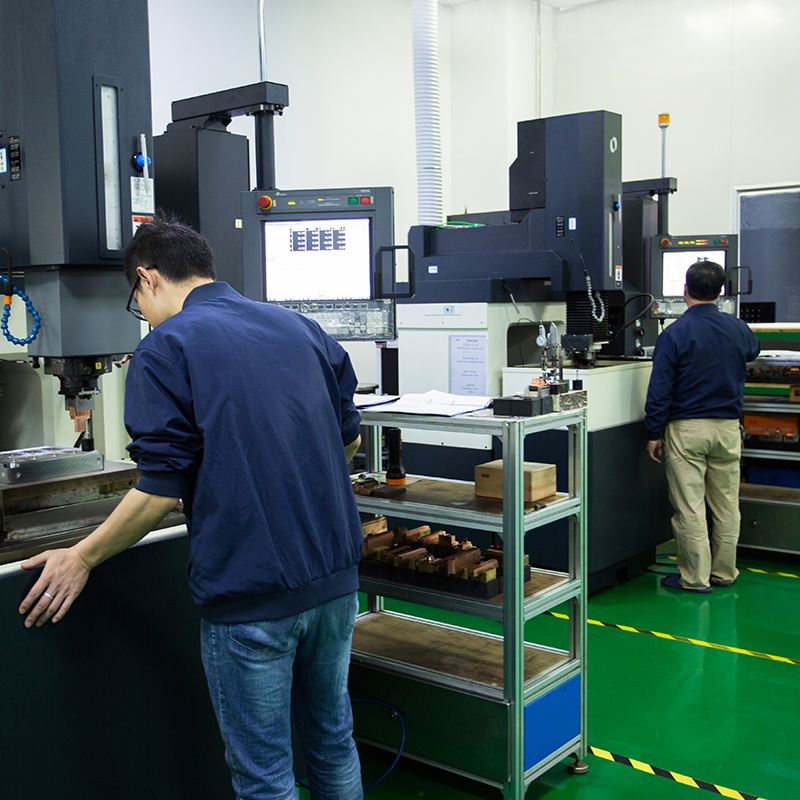

Machining transforms design into reality. Using advanced CNC milling, EDM (Electrical Discharge Machining), and precision drilling, we craft mold cavities with exact detail.

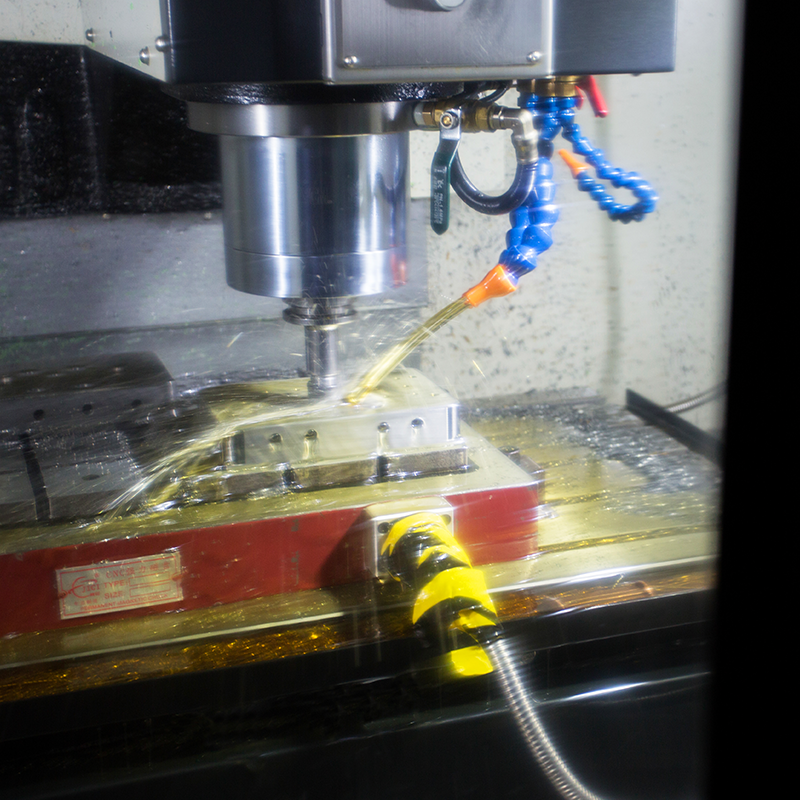

- CNC Milling: Establishes the primary mold shape.
- EDM: Achieves sharp edges and intricate geometries for webbing and button domes.

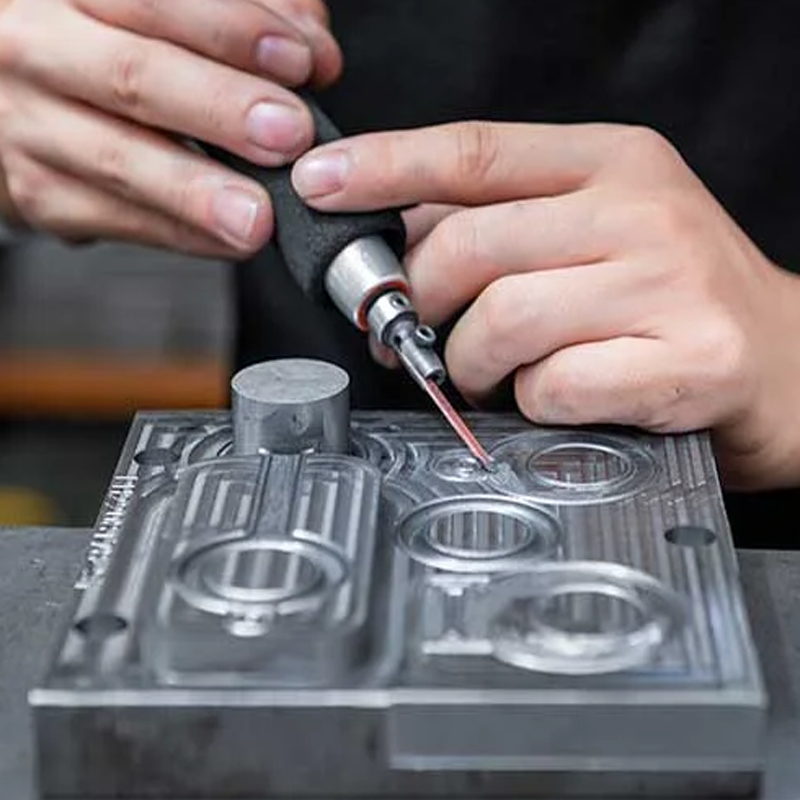

- Polishing and Surface Treatment: Refines mold surfaces for smooth demolding and aesthetic consistency.
These steps ensure every keypad is produced with consistency, minimizing flash, maintaining alignment, and supporting mass production without quality degradation.
Webbing Design: Where Function Meets Feel
The tactile feel of a silicone keypad depends largely on its webbing design. Factors such as thickness, angle, and diameter influence press force, rebound, and snap ratio.
At Siliconekeytech, we simulate the collapse and recovery of webbings to optimize the tactile response before machining. A well-engineered webbing ensures comfortable operation, longevity, and consistent feel across every batch.
| Webbing Feature | Impact on Function |
|---|---|
| Thickness | Controls actuation force |
| Angle | Determines snap effect |
| Diameter | Affects rebound strength |
This focus on detail is one reason why our custom service solutions can provide unique keypad designs tailored to the needs of automotive, medical, industrial, and consumer electronics applications.
Handling Multi-Shot and Insert Molds
Modern keypad applications often require more than a simple silicone mold. Multi-material or embedded component designs are increasingly in demand.
- Insert Molding: Silicone is molded over a PC frame or metal insert, adding strength and integration.
- Multi-Shot Molding: Dual-color or dual-hardness designs are achieved by injecting two silicone types in separate steps.
- Hybrid Molding: Electronics or conductive components are embedded during molding.
These specialized molds require precise engineering and add value to products, combining function with durability and aesthetics. As a factory and supplier, we provide this capability as part of our one-stop service.
Tooling Validation and Quality Assurance
No mold goes into mass production without strict validation. At Siliconekeytech, we conduct T1 sampling, dimensional analysis, and tactile testing to confirm mold performance.
We evaluate for:
- Flash or misalignment
- Webbing response curves
- Dimensional tolerances
- Force-displacement performance
By conducting early trials, we avoid downstream issues, reducing time-to-market and ensuring customers receive high quality products consistently.
Why Work With Siliconekeytech?
As a professional manufacturer and factory, Siliconekeytech provides more than molds—we deliver reliability, scalability, and innovation. With decades of experience, we offer:
- One-stop service: From CAD design to mold validation to final keypad assembly.
- Custom service: Tailored keypad solutions for automotive, medical, consumer electronics, and industrial applications.
- High quality standards: Every mold undergoes strict inspection to guarantee durability and precision.
- Mass production expertise: Our factory supports large-volume runs without compromising on consistency.
Conclusion: Building Keypads That Last
Silicone keypad performance is defined by tooling excellence. From CAD modeling and material selection to CNC machining and final validation, every step at Siliconekeytech is designed to ensure high quality, durability, and efficiency in mass production.
If you’re looking for a manufacturer or supplier that can deliver both custom service and one-stop service, our team at Siliconekeytech is here to help. Let’s collaborate to turn your keypad design into a product that performs reliably for millions of cycles.Are you ready to explore high-quality silicone keypad solutions? Contact Siliconekeytech today and let’s build the future of your products together.
